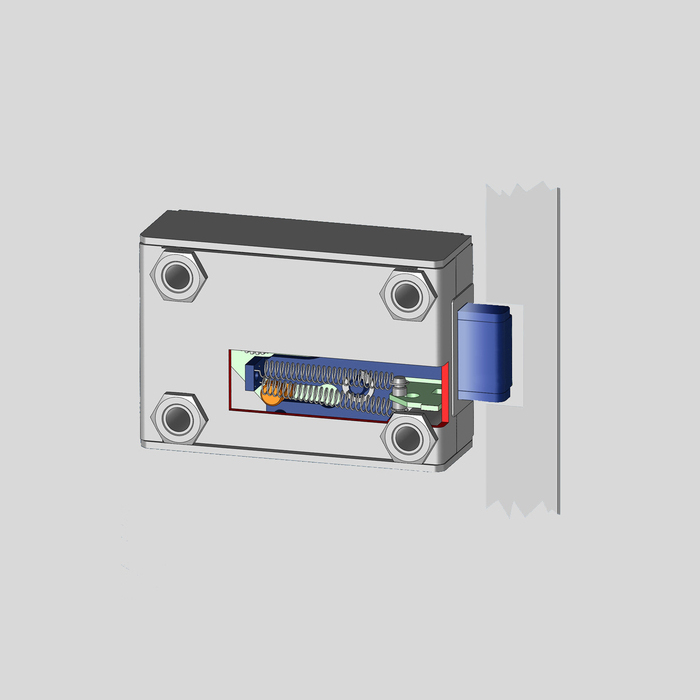

Primor 3000

Characteristics

  • Locking and opening by motor-driven bolt movement
  • Spring-loaded bolt jumps into locking position when boltwork is being closed. Crush load protection by spring-loaded bolt, hence no boltwork position switch is needed.
  • The electronic lock is completed by a key lock. Therefore an opening is possible in case of an emergency

    •

    Certification

  • EN 1300 B
  • VdS class 2
  • ECBS
  • IMP class B
  • Primor Signal plus

    •

    Suited for input units

  • Primor RO
  • Primor FL
  • Primor FS

    •

    Technical documentation

  • Primor 3000 (.pdf)
  • Primor 3010 (.pdf)

    •

    Manuals

  • Installation instruction Primor 3000 (.pdf)
  • User's manual Level 5 (.pdf)
  • User's manual Level 15 (.pdf)
  • Primor Audit (.pdf)
  • Primor Signal (.pdf)
    • Categories: , Tags: ,

    Description

    Technical characteristics Primor 3000
    Lock case/bolt galvanised steel
    Lock – mounting position right-hand/left-hand/up/down
    Fixing points standard
    Bolt/bolt movement square bolt, spring-loaded/motor-driven
    Bolt force (N) 2.5
    Bolt stroke (mm) 12
    Power supply 1 x 9 V block battery

    Functions

    Functions Level 5 Level 15
    User codes 1 9
    Master codes 1 1
    Instant opening code •
    Operation blocking •
    Manipulation blocking • •
    Time delay (1-99 min) • •
    Opening window (1-19 min) • •
    Silent alarm * •
    External release/blocking * •
    Audit – events without time and date ** 100
    Battery control • •
    * = in combination with extension box PrimorSignal
    ** = in combination with audit-set

    Options & Accessories

    Options & accessories Primor 3000
    Input units Primor RO/FL/FS
    Spring-loaded square bolt with threaded holes 2 x M4
    Latch bolt (no certification) •
    Mechanical emergency lock system Primor 3010
    Extension box PrimorSignal •
    Audit-set software, 1 iButton, iButton reader, USB-adapter, y-adapter

    Application range

    Application range

  • safes VDMA A/B
  • safes EN 0 – V
