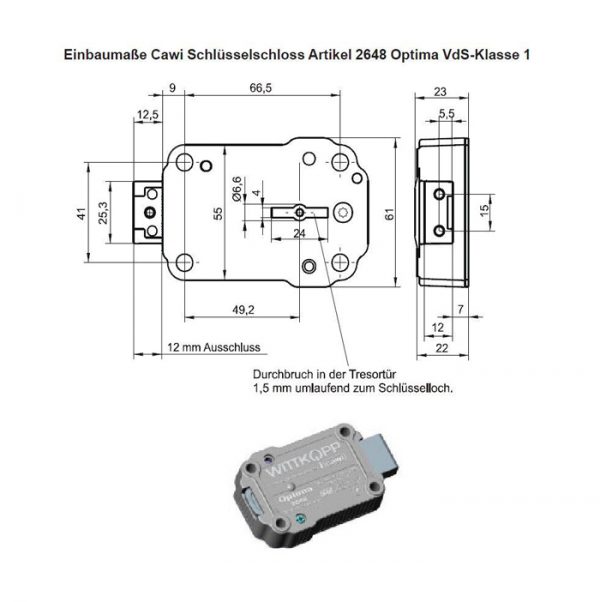

Optima 2648

Characteristics

  • Lock case and bolt made of die-cast zinc
  • Untold number of applications

    •

    Options & accessories

  • Lock actuated by master key: The master key is higher ranking and actuates every lock in the system, whereas the user keys can only actuate a single lock. Certification expires
  • Suited for master key systems with up to 50 cabinets

    •

    Certification

  • EN 1300 A
  • VdS class 1
  • a2p Level A (E)
  • IMP Class A
  • ECBS

    •

    Application range

  • Hotel, small and home safes
  • Gun cabinets
  • Master-key systems
  • VDMA A/B safes
  • EN 0 – II safes

    •

    Technical documentation

  • Optima 2648 (.pdf)

    •

    Manuals

  • Installation instruction (.pdf)
  • User's manual (.pdf)
    • Categories: , Tags: ,

    Description

    Technical characteristics 2648-000-0
    Lock case/bolt die-cast zinc
    Lock right-hand
    Levers 8
    Fixing points standard
    Bolt square bolt
    Bolt stroke (mm) 12
    2 double-bit keys (mm) die-cast zinc, 95

    Lock options

    Lock options
    Lock left-hand
    Bolt square bolt, solid, nickel-plated
    Square bolt with threaded holes 2 x M4
    Elongated key pin (mm) 10
    Keyed-alike lock – certification expires •
    Lock actuated by master key – certification expires •
    Key removable from lock when open – certification expires •

    Key options

    Key options
    Die-cast zinc (mm) 65/120/145/160
    Brass (mm) 72/94/114
    Red brass (mm) 56
    Nickel silver (mm) 96/150
    Nickel silver/steel (mm) 180/230/280/320
    Nickel silver/steel (mm) – detachable bit key or folding key 150/180/230/280/320
