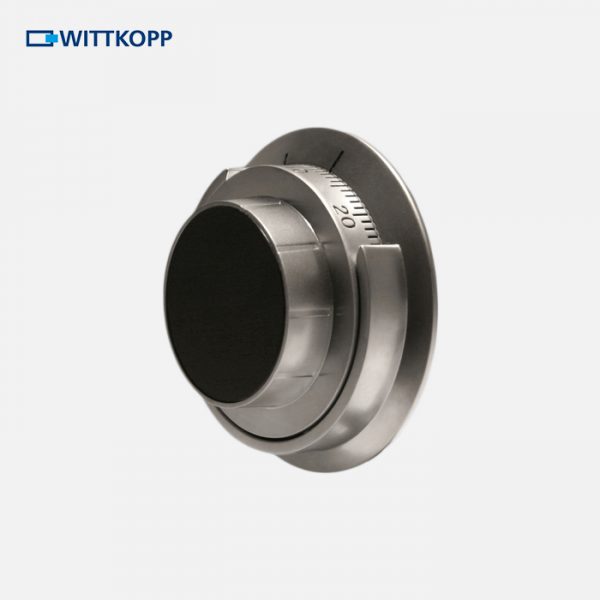

Dials & rings

Characteristics

  • Combination locks are operated with the dials
  • Number scale protected by blinds
  • Separate changing and opening index
  • Included in the scope of delivery is a square spindle that can be used with door thicknesses up to 125 mm
  • Prepared notches in the square spindle simplify the trimming
  • Front of dial can be designed individually

    •

    Suited for lock

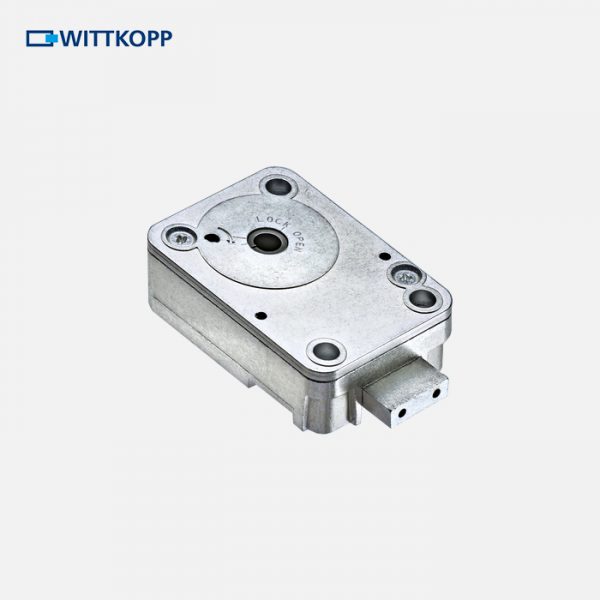

  • Combination lock 7800

    •

    Technical documentation

  • 7800 (.pdf)

    •

    Manuals

  • Installation instruction dial & ring (.pdf)
  • Installation instruction combination lock (.pdf)
    • Categories: , Tags: ,

    Description

    Technical characteristics Dials&rings
    Diameter (mm) 92.5
    Height (mm) 30
    Scale changing and opening index
    Spindle diameter/length (mm) □ 6/155
    Spindle square spindle
    Material plastic, black (7800-100-0)
    die-cast zinc, black (7800-101-0)
    die-cast zinc, satin chromed (7800-102-0)
    die-cast zinc, gloss chromed (7800-103-0)
