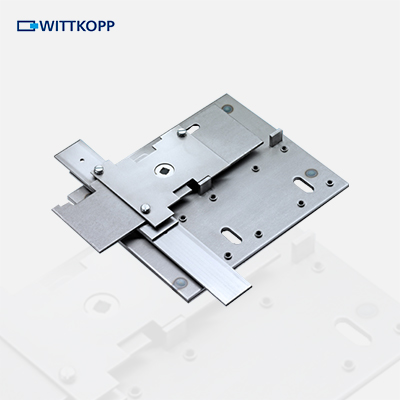

Boltwork 7618/7628

Characteristics

  • 3-sided (7618) or 4-sided (7628) boltwork for 2-lock operation
  • No predefined operation sequence

    •

    Features

  • Boltwork 7618 with emergency key lock system: Additional key lock to the electronic lock. Thus, in an emergency mechanical opening possible
  • Additional protection against tampering with optional anti-drilling plate made of hardened manganese steel
  • Main and vertical shafts available in different lengths

    •

    Application range

  • Safes
  • Money changers
  • ATMs
  • High-strength containers up to resistance grade III

    •

    Technical documentation

  • Boltwork 7618/7628 (.pdf)
    • Category: Tag:

    Description

    Technical characteristics 7618 7628
    Installation dimensions, closed (mm) 297 x 269 297 x 318
    Fixing welded welded
    Blocking 3-sided 4-sided
    Stroke – main shaft/vertical shafts (mm) 20/20 20/20
    Square nut (mm) 8 8
    Hinges at right right
    Suitable for emergency lock system •
    Lock – number 2 2
    Lock – footprint standard standard
    Lock – fixing M6 M6
    Weight (kg) 2.8 3.2

    Options

    Options
    Square nut (mm) 11
    Hinges at left
    Protection against tampering, anti-drilling plate (mm) 220 x 185 x 2
